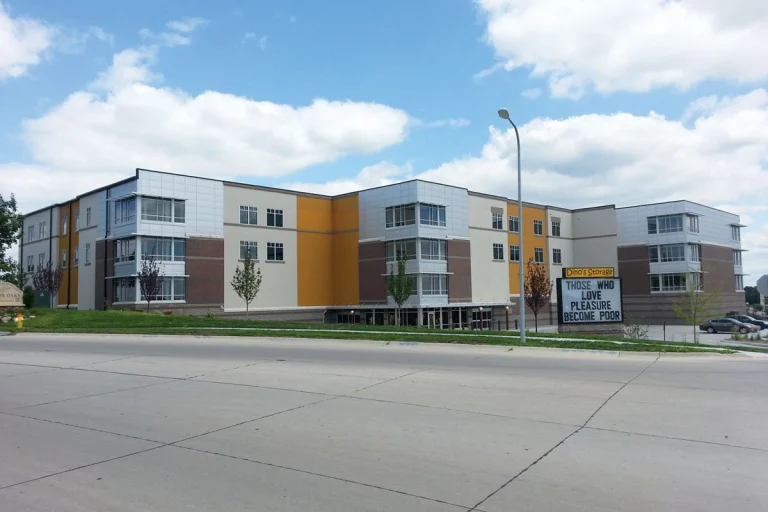

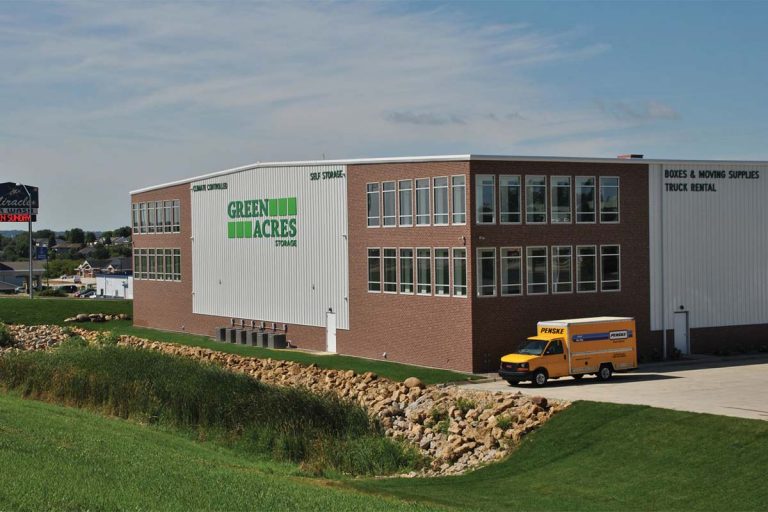

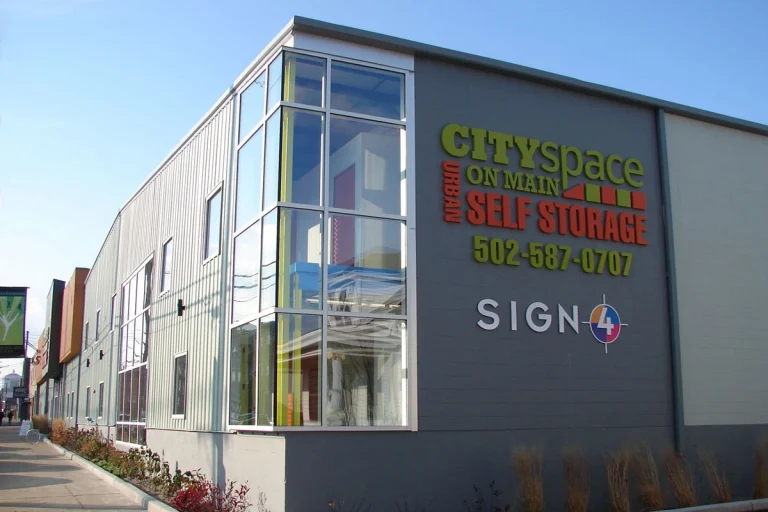

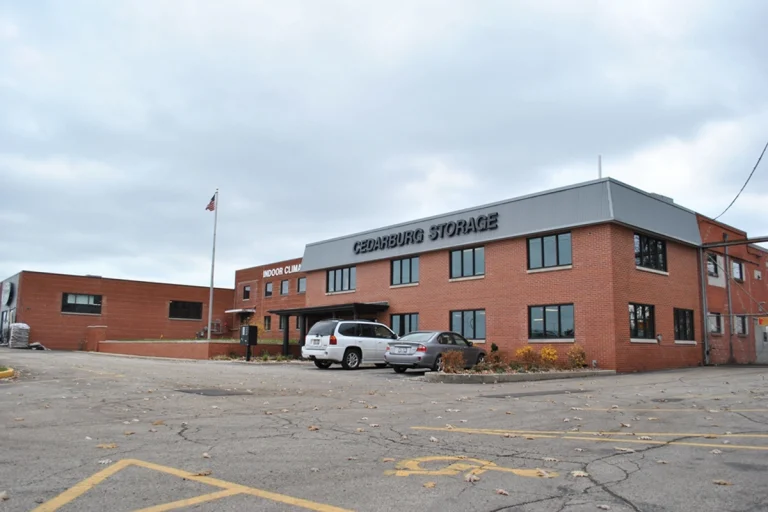

The Trachte™ Multi-Story Self-Storage System is ideal for urban areas with high property values and dense populations. Naturally, when land is limited, this design maximizes the rentable space needed to achieve a financially feasible project. Additionally, the system can be designed as a stand-alone building or constructed into a hillside.
Trachte’s two, three, and four-story designs can be customized to accommodate stairways, elevators, lifts, hallways, and exterior doors. It features a corridor system to meet your market or city building requirements. Hillside plans also offer the advantage of drive-up exterior access on both levels while achieving symmetry to your facility when land terrains are uneven.
Select an option below to learn more.
Ground Snow Load
10 to 110 lb.
Wind Load
70 to 150 m.p.h.
Floor Load
125 pounds per square foot
Roof Pitch
1/4", 1/2", 1", 2", 3", 4", 5", 6", 7", 8":12" gable or single slope design
Floor Systems
20-gauge to 16-gauge long-span floor deck
Standard Widths
20' – 200' in 5' increments
Standard Bay Widths
5', 8', 10', 11', 12'
Standard Eave Heights
17', 18', 19', 20', 21' (2-story)*
30', 31', 32' (3-story)
40', 41', 42' (4-story)
Standard Floor-to-Floor Heights
9', 10', 11'
Exterior Framed Openings
18-gauge prefinished, G-90 galvanized steel
Exterior Wall Panels
26-gauge A-panel
Interior Partition Panels
29-gauge R-panel galvalume
Roof Panels
24-gauge galvalume standing seam
26-gauge galvalume R-panel
Rake and Eave Trim
26-gauge
* Other sizes available upon request
Note: Product specifications are subject to change without notice.
Select an option below to learn more.
Each Trachte self-storage system is designed and manufactured to include Trac-Rite® roll-up doors. Trac-Rite doors are built for durability, featuring sturdy construction and custom engineering for strong, smooth operation.
Available in custom sizes from 2′ 8″ to 11′ wide x 3′ to 12′ high in 1″ increments.
*Note: 8′ wide is the smallest size for 944WL.
The 977 is available in custom sizes from 8’ wide x 14’ wide to 16’high in 1″ increments.
Available in custom sizes from 10′ to 18′ wide x 8′ to 16′ high in 1″ increments.
Trachte Building Systems offers a 40-year* paint warranty against peeling and flaking, ensuring your facility looks great for years. This warranty also covers Trac-Rite® doors. Additionally, all Galvalume® roofs come with a 25-year warranty.
Trachte guarantees all materials, including Trac-Rite® doors, to be free of defects for a period of three (3) years.
ASH GRAYº
ICED WHITEº
CLASSIC BEIGEº
CREAM BEIGEº
LIGHT STONEº
SLATE GRAYº
Bright White*
ICED WHITEº
LIGHT STONEº
ASH GRAYº
Shale*
Silhouette Gray*
Dark Charcoal Grey*
Desert Tanº
Continental Brownº
Burnished Slate*
Matte Blackº
UB Yellow*
Teal*
Royal Blueº
Polar Blueº
Fern Green*
Evergreenº
Wasabi Green*
Lime Green*
Cedar Redº
Garnetº
Crimson Red*
Patriot Redº
Sunset Orangeº
Galvalume
Standard roof finish.
Regal White/Snow White
Closest match to Iced White.
Surrey Beige/Brownstone
Closest match to Classic Beige
Patrician Bronze/Midnight Bronze
Colonial Red
Closest match to Cedar Red.
Evergreen/Classic green
Roman Blue/Hawaiian Blue
Closest match to Polar Blue.
Harbor/Regal Blue
Closest match to Royal Blue.
SLATE GRAY
Matte Black
ºAvailable in building trim.
*Available in doors only.
Galvalume
ICED WHITE
CLASSIC BEIGE
CREAM BEIGE
LIGHT STONE
SLATE GRAY
ASH GRAY
Matte Black
Cedar Red
Royal Blue
Evergreen
Note: Colors shown vary from actual material.
All colors have a Coil Coatings (Paint) Limited Warranty. The standard warranty is 40/30 years, which may vary by color. Further warranty information available upon request. For an accurate color sample, please contact Trachte Building Systems at 800-356-5824 to request a metal sample.
