CONVERSION STYSTEM

Save by Utilizing an Existing Building

The Trachte™ Create-A-Space Conversion System is a practical solution for converting existing buildings into storage facilities. Utilizing an existing structure is cost effective, as it minimizes the amount of required building materials and takes advantage of property already approved for commercial use. This freestanding system can also be installed within new construction.

Regardless of the existing building design, the conversion system can be customized to maximize available space and the unit mix can be tailored to meet customer needs, and ultimately increase your rental income.

Features

Customizable

SMART DESIGN

QUALITY MATERIALS

TECHNOLOGY

CONVERSION SYSTEM SELF STORAGE

Featured Projects

No data was found

Conversion Systems

Select an option below to learn more.

Interior Framed Openings (jambs and headers)

22-gauge Bright White

Partition System Heights

7' to 11' in 6" increments

Corridor Rigid Rib or Flush Walls

Bright White

Corridor Top Trim

1 3/4" x 2 1/2" x 10'0" 24-gauge

Corridor Corner Trim

2 1/2" x 2 1/2" x panel height 22-gauge

Partition Panel

29-gauge galvalume R-panel

Partition Corner Trim

2 5/8" x 2 5/8" x panel height 20-gauge

Partition Top Angle

1 1/2" x 2 1/2" x 10'0" or 12'0" 16-gauge or 20-gauge

Partition Bottom Track

1" x 1 1/4" x 1 1/2" x 10'0" 26-gauge

Angle Bracing

1 1/2" x 2 1/2" x 3'0" 20-gauge

Angle Bridging

1 1/2" x 2 1/2" 16-gauge

Door Choices

26-gauge Ribbed Swing Door
20-gauge Flush Panel Door
26-gauge Roll-up Door

Locker Units

4' or 5' Wide Double Stacked

Note: Product specifications are subject to change without notice.

Select an option below to learn more.

	One Story	Multi Story	Canopy	Conversion System
Automatic Doors
Block Exteriors
Brick Exteriors
Canopies/Porches
Climate Control
Colored Roofs
Drive Through Loading Bays
Dryvit™ or EIFS*
Elevators*
Glass Fronts*
Gutters and Downspouts
Insulation
Offices
Overhangs
Stone Exteriors*
Towers

Door Features

Each Trachte self-storage system is designed and manufactured to include Trac-Rite® roll-up doors. Trac-Rite doors are built for durability, featuring sturdy construction and custom engineering for strong, smooth operation.

Trouble-Free

Easy installation and low maintenance saves you time and money.
Rust-resistant components simplify upkeep.
Smooth, quiet operation you can rely on.
Factory-punched holes in brackets and guides ensure quick, precise installation.

Durable

Constructed from the best raw materials for a sturdy configuration.
Independently tested and certified, with 9′ wide doors rated to 130 mph.*
EP3 extreme performance spring, the industry’s only corrosion-proof spring.

Versatile

Custom-manufactured to the inch for a perfect fit.
The doors require minimal back room and headroom, providing more usable space within the storage unit.
SpaceGuard latch compatible with magnetic security systems.
A full line of accessory options to enhance your door package.

Convenient

Tension adjustment device fine tunes door operation for optimal performance.
Optional space-saving motor operator meets ADA requirements.*
Seal-Rite pliable weather seal offers advanced protection.

Guaranteed

Backed by industry-leading guarantees, including an unmatched 10-year EP3 spring warranty.

Attractive

Available in a variety of colors to complement your self-storage building.

Door Models

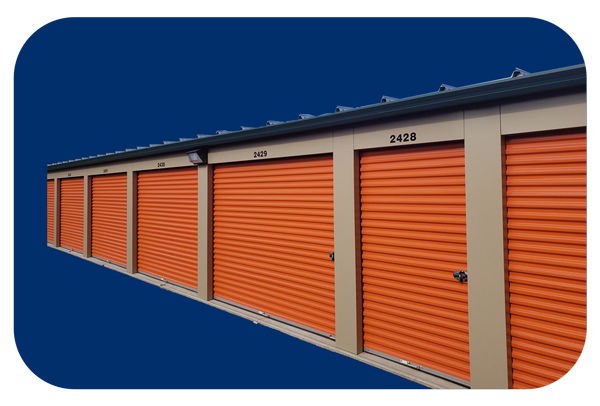

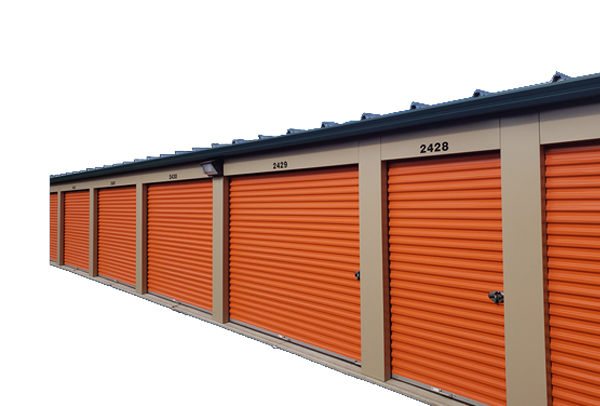

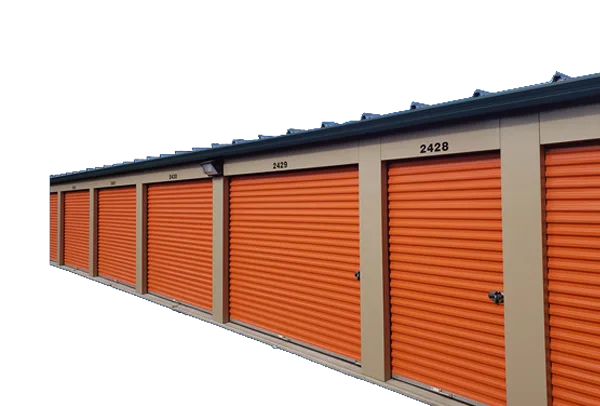

944 & 944WL

Self-Storage & Residential

Available in custom sizes from 2′ 8″ to 11′ wide x 3′ to 12′ high in 1″ increments.

*Note: 8′ wide is the smallest size for 944WL.

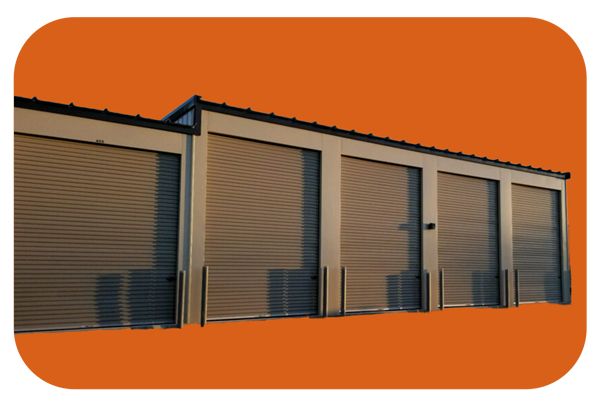

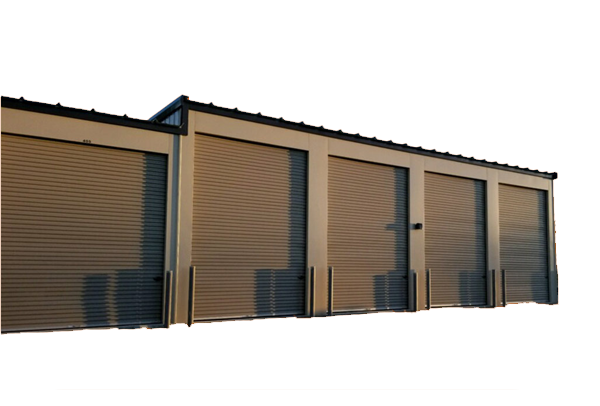

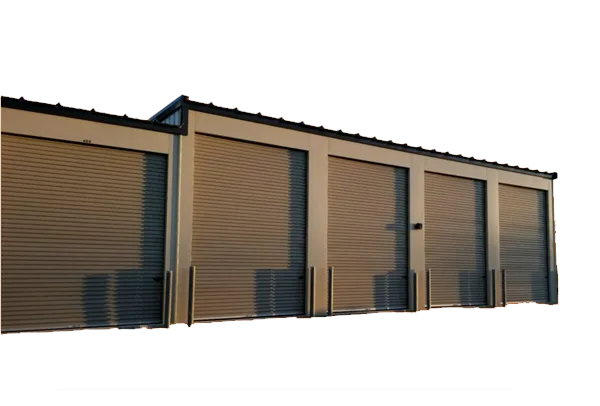

977 & 977WL

Light Commercial, Boat/RV & More

The 977 is available in custom sizes from 8’ wide x 14’ wide to 16’high in 1″ increments.

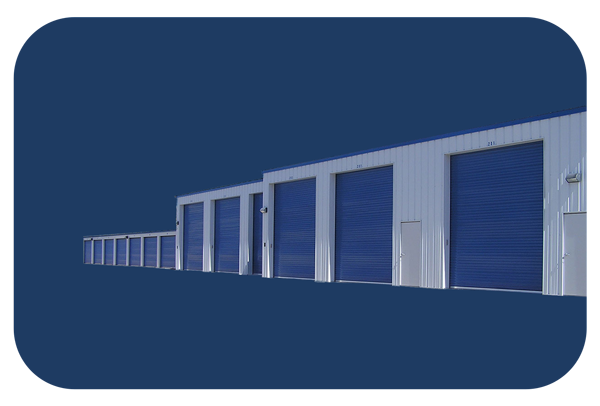

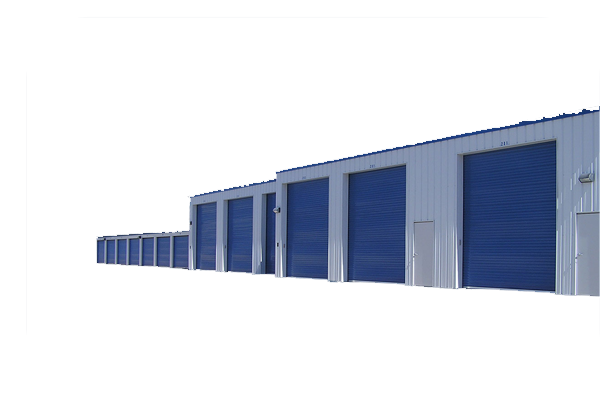

988 & 988WL

Shipping Docks & Warehouses

Available in custom sizes from 10′ to 18′ wide x 8′ to 16′ high in 1″ increments.

40-Year* Paint Warranty

Trachte Building Systems offers a 40-year* paint warranty against peeling and flaking, ensuring your facility looks great for years. This warranty also covers Trac-Rite® doors. Additionally, all Galvalume® roofs come with a 25-year warranty.

3-Year Parts and Workmanship Warranty

Trachte guarantees all materials, including Trac-Rite® doors, to be free of defects for a period of three (3) years.

COLORS

View Live Colors with Our Color Simulator

Download Color Chart

Exterior Wall Colors

ASH GRAYº

ICED WHITEº

CLASSIC BEIGEº

CREAM BEIGEº

LIGHT STONEº

SLATE GRAYº

Door and Trim Colors

Bright White*

ICED WHITEº

LIGHT STONEº

ASH GRAYº

Shale*

Silhouette Gray*

Dark Charcoal Grey*

Desert Tanº

Continental Brownº

Burnished Slate*

Matte Blackº

UB Yellow*

Teal*

Royal Blueº

Polar Blueº

Fern Green*

Evergreenº

Wasabi Green*

Lime Green*

Cedar Redº

Garnetº

Crimson Red*

Patriot Redº

Sunset Orangeº

Standing Seam Roof Colors

Galvalume

Standard roof finish.

Regal White/Snow White

Closest match to Iced White.

Surrey Beige/Brownstone

Closest match to Classic Beige

Patrician Bronze/Midnight Bronze

Colonial Red

Closest match to Cedar Red.

Evergreen/Classic green

Roman Blue/Hawaiian Blue

Closest match to Polar Blue.

Harbor/Regal Blue

Closest match to Royal Blue.

SLATE GRAY

Matte Black

ºAvailable in building trim.
*Available in doors only.

R-Panel Roof Colors

Galvalume

ICED WHITE

CLASSIC BEIGE

CREAM BEIGE

LIGHT STONE

SLATE GRAY

ASH GRAY

Matte Black

Cedar Red

Royal Blue

Evergreen

Note: Colors shown vary from actual material.

All colors have a Coil Coatings (Paint) Limited Warranty. The standard warranty is 40/30 years, which may vary by color. Further warranty information available upon request. For an accurate color sample, please contact Trachte Building Systems at 800-356-5824 to request a metal sample.
